S67A

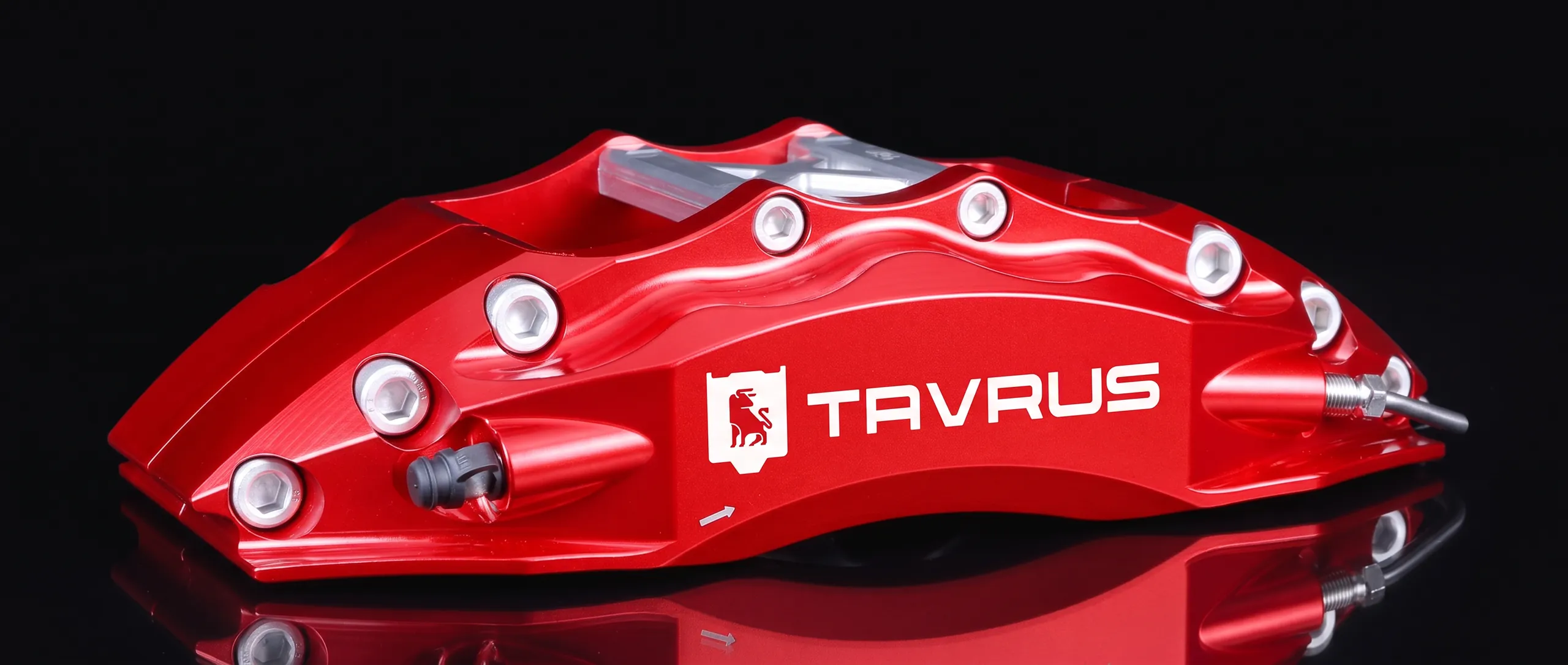

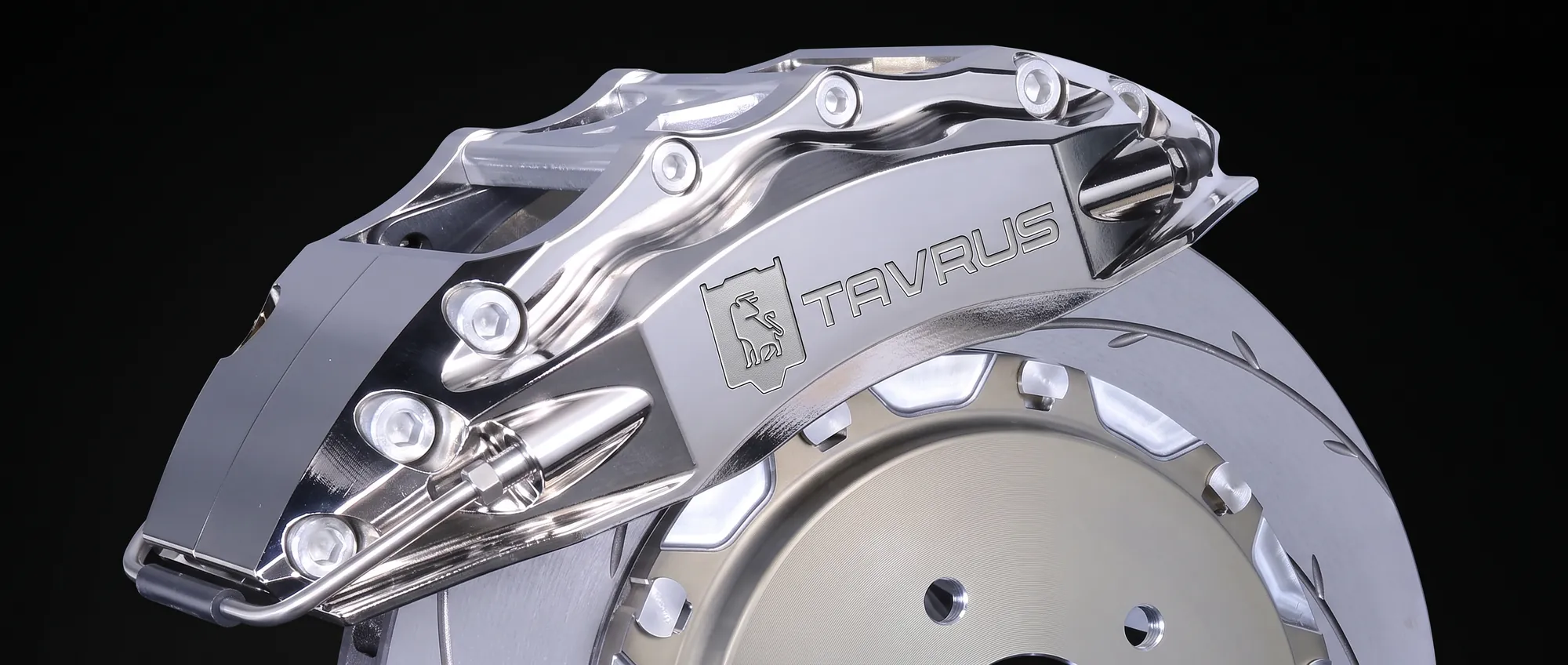

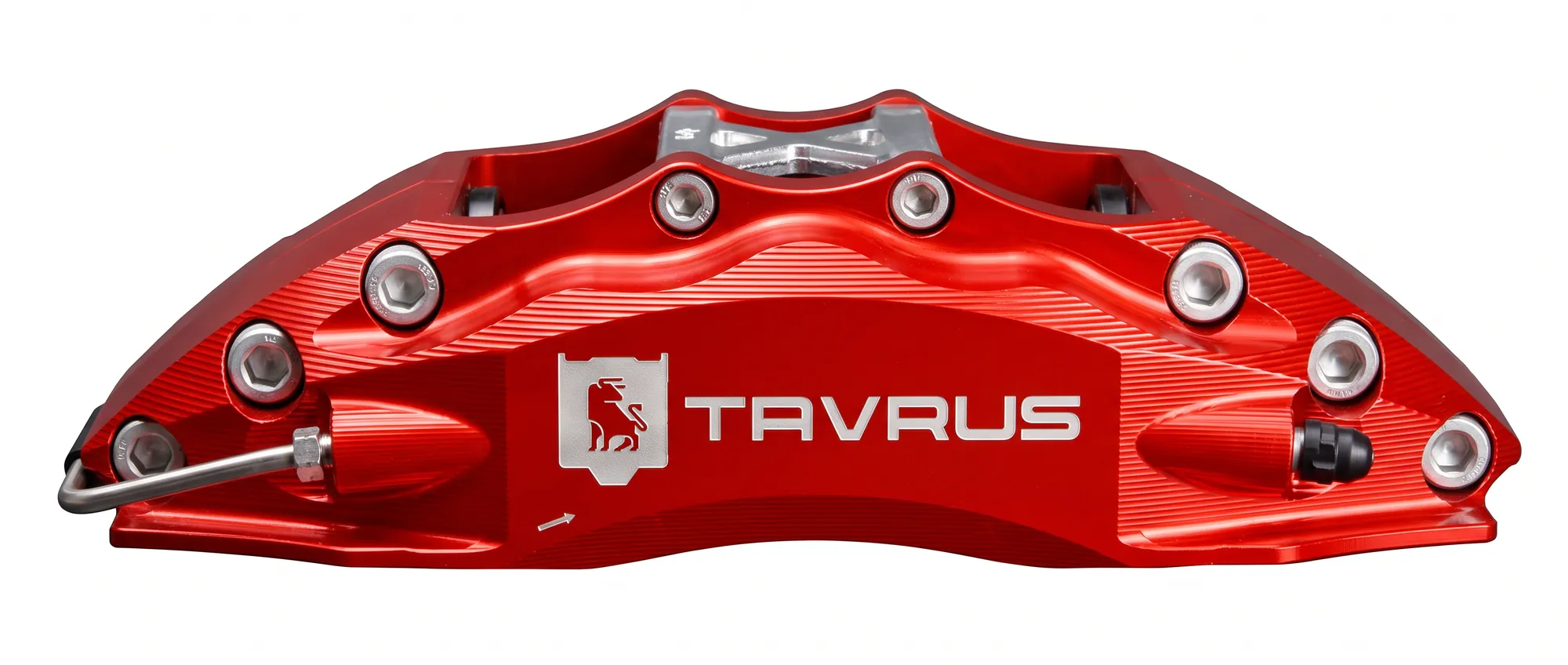

S67A — large 6-piston caliper for the front axle of B- and C-class cars. OVERVIEW S67A is one of the largest 6-piston calipers we develop and produce. The body is forged from aluminium alloy: forging delivers high rigidity, tensile strength, toughness and material density. Compared with cast aluminium calipers, body rigidity is about 50% higher, which reduces the risk of caliper failure in service. The built-in double oil seal (instead of ordinary external dust boots) makes the brake feel and reaction more precise. After anodizing and vacuum coating (CVD) the colour is locked in: the coating does not crack or peel and gives the caliper a metallic sheen and vivid colour. HIGHLIGHTS • One of the largest calipers we develop and produce. • Larger piston area — a more linear, predictable pedal. • After rigorous multi-stage testing in various conditions, performance is about 25% above the stock caliper. • With high-performance pads it confidently handles intense driving — from mountain roads to the track. CALIPER SPECIFICATIONS • Weight: 4214 g/pc • Piston area: 50.41 cm² • Piston diameter: 28 mm × 2 / 32 mm × 2 / 38 mm × 2 • Brake disc diameter: Ø400 mm–Ø380 mm • Brake disc thickness: max 34 mm / min 32 mm • Caliper dimensions: D175.5 × H78.175 × W311.407 mm • Oil inlet thread: M10×1 • Mounting hole centre distance: 210 mm • Mounting hole offset: 41.7 mm • Mounting hole diameter: 12.25 mm • Distance from mounting plane to the top of the disc: 46.1 mm BRAKE DISC • Friction surface width: Ø380 mm × 34–54.5 mm; Ø400 mm × 34–54.5 mm • Ventilation: Ø380 mm × 34 — 84 curved ducts, 7 slots, PCD 258 mm; Ø400 mm × 34 — 84 curved ducts, 7 slots, PCD 278 mm • Heat treatment: 580 °C heating / 120 °C cooling, cycled for 72 h • Mounting hole diameter: Ø8.1 mm • Centring ring: Ø238 mm (for Ø380 × 34 disc), petal step 1.5 mm; Ø258 mm (for Ø400 × 34 disc), petal step 1.5 mm • Surface treatment: iron phosphating, ground friction surface • Disc standard: GG20HC BRAKE PADS • Model: S67A • Thickness: 20 mm • Friction surface width: 50 mm • Friction block area: 67.39 cm² • Compound: F500 (standard) / F600 (street, optional) / S750 (street & track, optional) / R900 (track, optional) / S800 (for carbon-ceramic discs, optional) QUALITY CONTROL • Forged body tensile strength: Qb ≥ 320 MPa • Body hardness: HV ≥ 400 • Low-pressure seal test: 0.4 MPa air, hold 5 s, pressure drop ≤ 100 Pa • High-pressure seal test: 12 MPa air, hold 5 s, pressure drop ≤ 0.2 MPa • Appearance: anodized surface free of damage, uniform colour and gloss • Ultra-high pressure test: sampled calipers withstand 30 MPa oil pressure without failure • Other characteristics per QC/T592.
